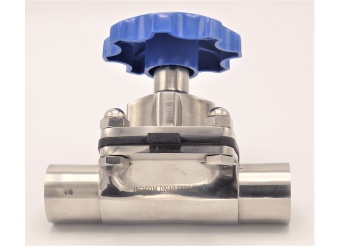

Stainless steel diaphragm valves

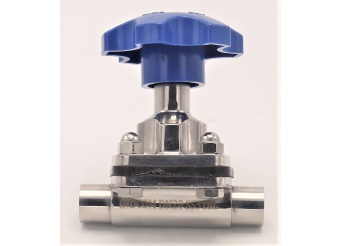

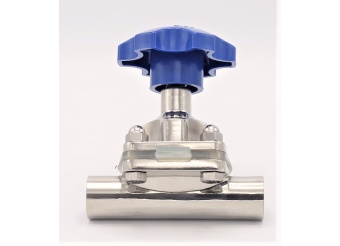

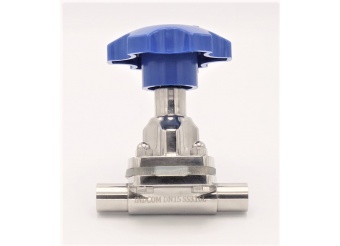

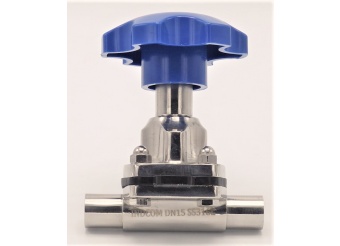

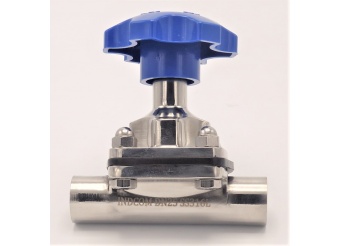

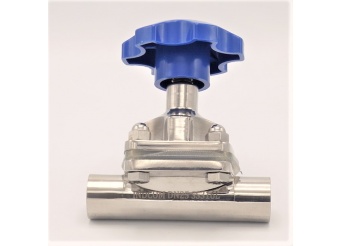

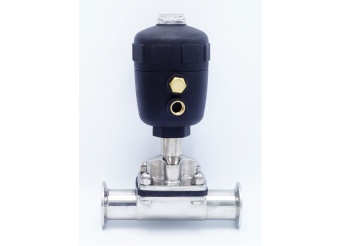

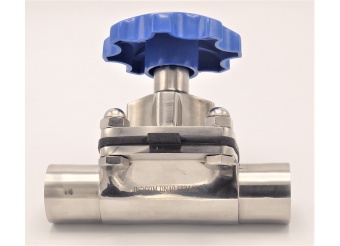

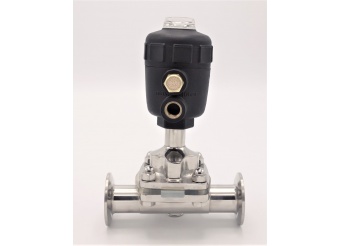

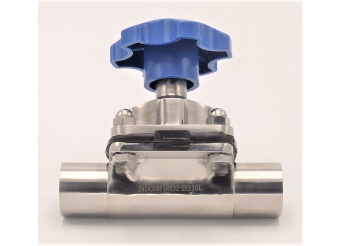

Manually operated diaphragm valves, clamp type C-C Manually operated diaphragm valves, welded type S-S Pneumatically operated diaphragm valves, clamp type C-C Spare parts for diaphragm valves

Description of the diaphragm valve:

Closing of the valve is ensured using a pin that presses on the diaphragm. The valves are soft sealing and allow a perfect closing even if the flow of media contains some solid pieces.

• Standard: DIN
• Operational pressure: see. individual valves characteristics
• Type: welded, clamped connection
• Material: Stainless steel 1.4404 (AISI 316L), 1.4301 (AISI 304), see. individual valves characteristics

• Maximum operating temperature: according to the material of the diaphragm

• Sterilization temperature (max. 20 min): temperature is given by diaphragm material (150 °C VMQ, 110 °C EPDM)

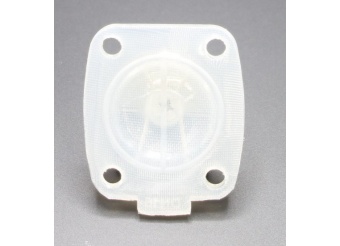

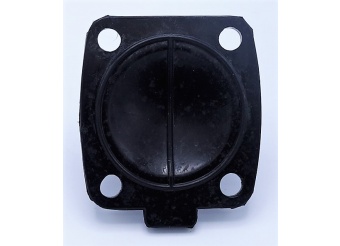

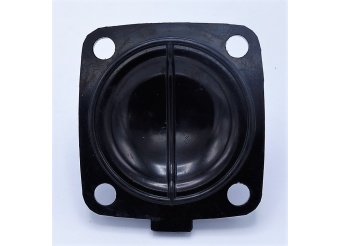

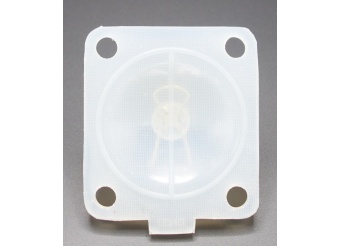

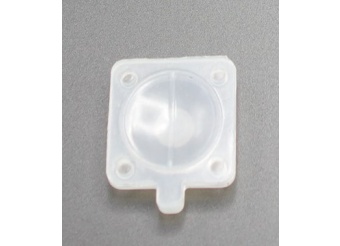

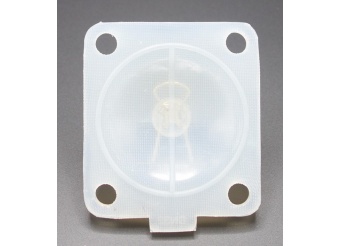

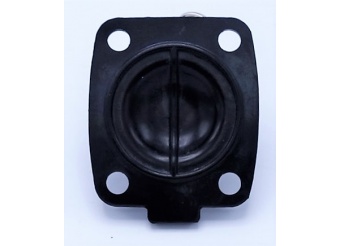

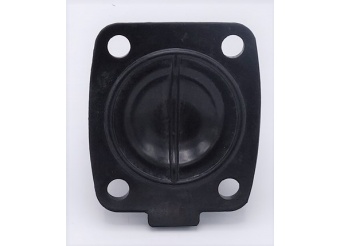

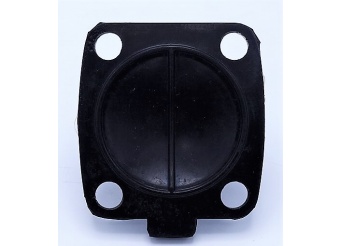

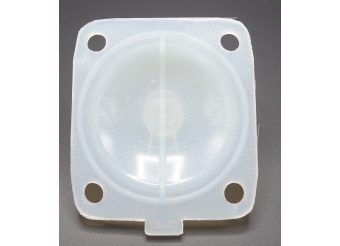

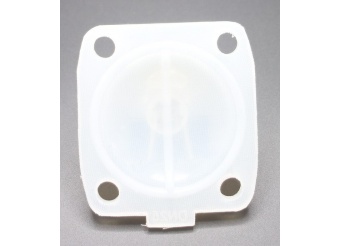

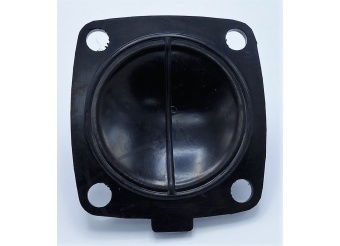

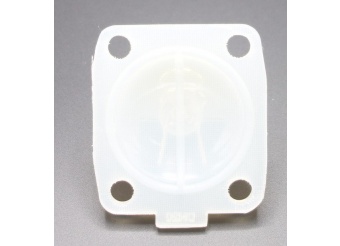

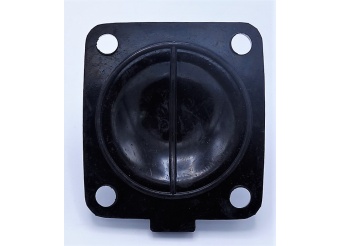

• Material of diaphragm: EPDM, VMQ (silicone)

• Operation of valves: manual or via a pneumatic actuator (air pressure 5-8 bar)

Application areas of diaphragm valve:

Wineries, breweries, dairy industry, beverage industry, food production, is widely used in pharmacy etc.

Material certificate EN 10204 3.1 on request.
